    Advanced Mobility Reporting (AMR) (formerly ALMS ARA) is an ALMS offering that provides data analysis and historical reporting for your AirLink gateways and routers.

    AMR is available as part of AirLink Premium or an add-on to AirLink Complete with supported devices.

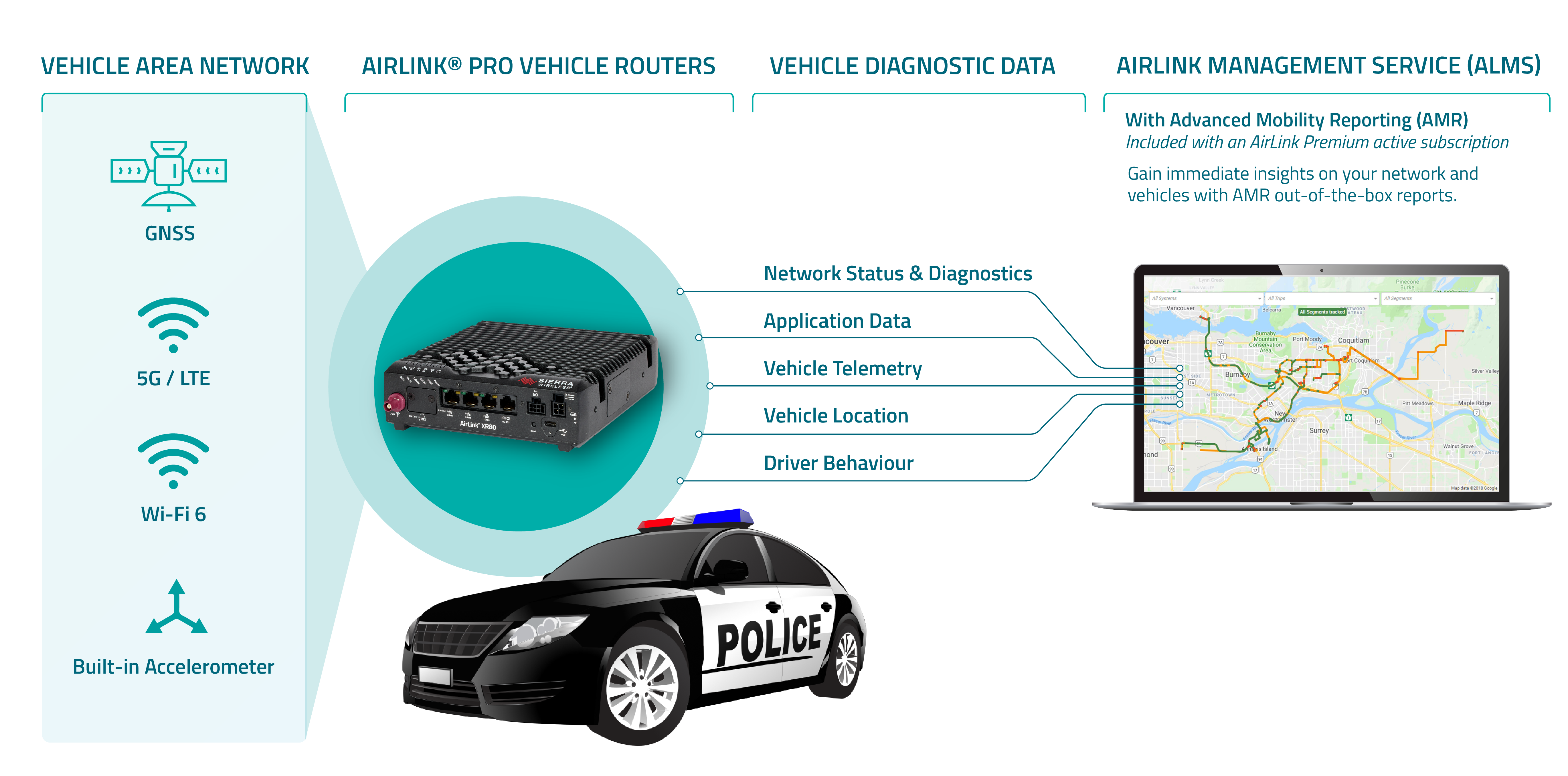

    AMR provides lightweight AVL and fleet management capabilities with its extensive telemetry data collection and reporting features. For better insight into your device status and vehicle behavior, AMR is an ideal low-cost, cloud-based solution. The Reporting section of ALMS is currently available only to AMR users.

    Initializing Table Of Contents...

    Summary of Available Reports

    AMR offers historical reports for:

    • Coverage Map

      Shows you system network connectivity status during trips within the reporting period. Supports single and multi-radio routers.

    • Coverage Trails

      Shows you WAN signal strength during trips within the reporting period for routers with a single cellular radio.

    • Multi-Radio Coverage Trails

      For routers running AirLink OS only. Shows you the specific connectivity status for multiple radios (cellular interfaces) during trips within the reporting period.

    • Driver Behavior

      Help keep your drivers safe and manage performance, measuring driving habits such as hard acceleration, hard deceleration, cornering and speeding.

    • Engine Fault Summary

      Schedule maintenance and repairs with a summary of engine faults detected, including time of fault, diagnostic code, total time and distance driven with the MIL activated.

    • Link Utilization

      For routers running AirLink OS only. Provides a summary of device status and connectivity over time; ideal for identifying connectivity issues that occur at specific times of day.

    • Odometer

      Retrieve the distance traveled for a vehicle during a specified period. You can also define a zone for odometer reports, so that any travel within a zone can be included or excluded from the report.

    • Seat Belt

      Provides an indication of when the driver’s side seat belt is not engaged while the vehicle is moving. You can set a speed threshold for vehicles to be included.

    • Trip Replay

      Shows you an animated view of a vehicle trip.

    • Trips

      Know what your fleet of vehicles has been doing with a historical view of vehicle location, with stop locations, speeding relative to posted limits, and network connectivity status data. Supports single and multi-radio routers.

    • Vehicle

      Save time in tracking which gateway devices are installed in which vehicles with an inventory of all gateways in vehicles, providing the device serial number, the vehicle’s VIN and the total miles driven for each vehicle.

    • Vehicle Utilization

      Get a complete picture of vehicle utilization including total engine time, trip time, idle and PTO time. (Where available. Requires proper vehicle installation of GPIO.)

    • Zone Summary

      Provides a summary of time spent (in hours/minutes and as a percentage) and distance travelled in one or more Zones.

    Each pre-defined report contains unique content focused on a specific purpose. Each report contains tabular and/or map-based results. You can configure any report to schedule the report delivery (daily, weekly, monthly) or run reports on demand; confine the report to a pre-defined region with Zones (geofencing), export reports as PDF, Excel or KML files, and output reports for printing.

    Prerequisites: What you need to use AMR

    Because AMR is primarily focused on vehicle telemetry reporting, there are a number of hardware and software requirements you must have in place before you can use AMR features. Running reports on other AirLink routers may not yield expected results.

    AMR reports vehicle data for AirLink routers connected to a vehicle. This includes ALEOS-based devices (AirLink GX450 gateways connected using a B&B OBD-II scanner, or MP70 or LX60 routers connected directly to a vehicle’s OBD-II or J1939 port) and AirLink OS-based AirLink XR80/90 routers with vehicle telemetry features enabled.

    ALEOS-based Devices

    The AirLink MP70 router, with its vehicle telemetry capability and inertial sensors, supports all features of AMR.

    Not all LX60 models support vehicle telemetry. Ensure that your LX60 supports Wi-Fi and GNSS and Telemetry before configuring vehicle telemetry and AMR.

    Driver behavior reports require inertial sensors on the router (as supported on the MP70), and will not be reported on an AirLink GX450 or LX60.

    For optimum reporting performance, connect the router’s ignition line (white wire on the power connector) to the vehicle ignition and connect the router to the vehicle bus as described in the MP70 Hardware User Guide. Many reports will not function correctly if the router is not wired correctly.

    In ALEOS, you must also enable:

    • Vehicle Telemetry (by setting Direct Vehicle Bus Data Collection to Enabled: Connected to Ignition)
    • Location Service
    • Driver Behavior Detection (MP70 only)
    • Dead Reckoning (MP70 only)
    • ALEOS Application Framework

    For more information, see the ALEOS Software Configuration User Guide for MP70 (for ALEOS 4.11.0 or later) or the ALEOS Software Configuration User Guide for LX60 (for ALEOS 4.13.0 or later).

    GX450 Gateway

    The GX450 gateway supports some features of AMR. The gateway must be connected to the vehicle using a B&B OBD-II scanner and Vehicle Telemetry Kit, as described in the AirLink Vehicle Telemetry User Guide (AVTA 1.1.1 or later).

    Connect the GX450 ignition line (white wire on the power connector) to the vehicle ignition and connect the gateway to the vehicle bus as described in the GX450 Hardware User Guide.

    The GX450 supports the following types of reports when correctly installed and configured:

    • Vehicle Reports
    • Vehicle Utilization Reports
    • Engine Fault Summary Reports
    • Trips Reports

    Other ALEOS-based devices may work with some reports (such as Link Utilization), but results will vary. For GPS-based reports, devices with Dead Reckoning will provide the best location accuracy.

    AirLink OS-based Devices

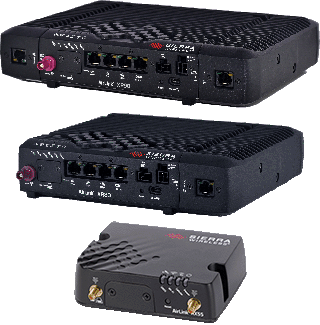

    The AirLink XR80 or XR90 routers, with their vehicle telemetry capability and inertial sensors, support all features of AMR.

    For optimum reporting performance, connect the router’s ignition line (white wire on the power connector) to the vehicle ignition and connect the router to the vehicle bus as described in the XR Series Hardware User Guide. Many reports will not function correctly if the router is not wired correctly.

    See the AirLink OS documentation for instructions on how to enable reporting in AirLink OS.

    Software and Applications

    ALEOS

    MP70 routers must be updated to ALEOS 4.11.0 or later.

    LX60 routers must be updated to ALEOS 4.13.0 or later.

    GX450 gateways must be updated to ALEOS 4.9.3 or later.

    The AirVantage Telemetry Application (AVTA) version 1.1.2 or later must be installed from ALMS. The AirLink GX450 with ALEOS 4.9.3 must be used with AVTA 1.1.1.

    AMR requires AirLink OS 2.1 at a minimum. AirLink OS 4.1 and above is recommended for optimal performance.

    See the table below for more information.

    Supported Versions by Report

    REPORT NAME ATP VERSION SUPPORTS ALEOS AVTA VERSION SUPPORTS AIRLINK OS AIRLINK OS VERSION
    Coverage Map 2.0 or later

    1.3.x or later

    4.1
    Coverage Trails 2.1 or later

    1.4.2 or later

    4.1
    Driver Behavior 2.0 or later

    1.3.x or later

    4.1
    Engine Fault Summary 2.0 or later

    1.3.x or later

    5.0*
    Link Utilization 3.0 or later

    n/a

    4.1
    Odometer 2.0 or later

    1.3.x or later

    4.1
    Seat Belt 2.0 or later

    1.3.x or later

    4.1
    Trip Replay 2.0 or later

    1.3.x or later

    4.1
    Trips 2.0 or later

    1.3.x or later

    4.1
    Vehicle 2.0 or later

    1.3.x or later

    4.1
    Vehicle Utilization 2.0 or later

    1.3.x or later

    4.1
    Zone Summary 2.0 or later

    1.3.x or later

    4.1

    * There is a known issue with the reporting of Engine Diagnostics for AirLink OS. This issue will be addressed in the 5.0 release.

    Reporting Dashboard

    When you click Reporting on the top menu, the Report Templates page appears. This is your reporting dashboard, giving you access to all your reports.

    The layout of the Report Templates page is user configurable. You can add widgets (as available), move or remove widgets.

    See here for more information about ALMS dashboards in general.

    The Report Templates page is divided into three sections:

    • The Recent Reports section. It provides access to the last 5 report instances along with their status, communications history, configuration and management.
    • The Create Report button opens a blank report template. See here for more information about creating a new report.
    • A list of Report Templates with additional information provided in columns. You can search for reports using filters.

    Recent Reports

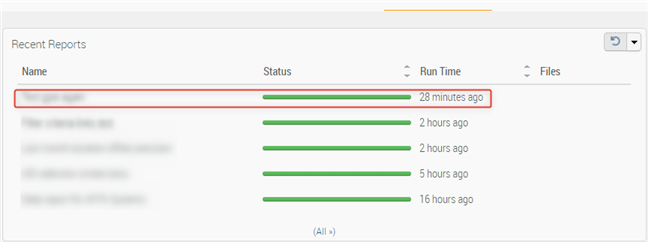

    The Recent Reports widget shows you the last five reports that were run, along with their status and time of completion.

    • To view a report, click the row for the desired report. See Viewing Reports below.
    • Hovering your mouse over the Files column allows you to download the report in its available file format.
    • Click the Refresh button on the top right to update the list
    • Click All to show all the report instances on the Reports page

    Please note that event datapoints are pre-processed in AirVantage on an hourly schedule before becoming available for AMR report purposes. Because of this, events occurring within the hour before the report execution time (scheduled or on-demand) may not be included in the report.

    Report Status

    Each report status is indicated by color.

    Generated successfully.

    Failed to generate.

    Failed to export.

    Processing.

    Timeout.

    If you click a report that has failed to generate, a message will appear with a link that will take you to the report definition page, where you can edit the report if you wish. Error messages also appear when you click reports that have timed out or are still processing. If a report is still processing, wait until it has completed.

    Error messages also appear when you click reports that have timed out or are still processing. If a report is still processing, wait until it has completed.

    If you click an export file format icon, an error message appears if the file cannot be downloaded in the enabled formats (such as PDF/CSV/KML) because of a file export generation failure, timeout, cancellation, or report processing error. The example on the right shows a KML report generation/export error. Note that when a file export generation failure occurs (the report status is orange), you can still view the report in your browser, as described in Viewing Reports below.

    Create Report

    Click this widget to begin configuring a new report template. For more information, see How to create a new report .

    Report Templates List

    The Report Templates List shows you all the existing report templates for your selected company.

    The columns displayed can be organized, resized and configured to show the parameters you want to see:

    To view a report template and see any report instances that have been generated, click the row for the desired report template.

    Manage large deployments

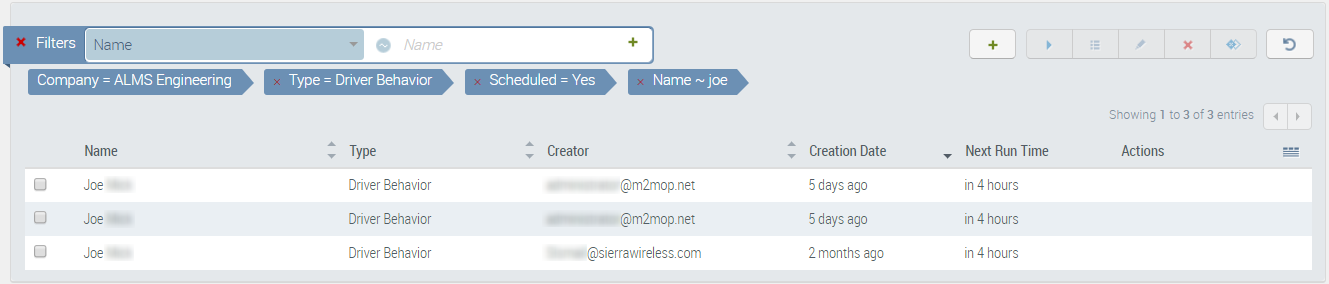

    Finding a report or group of reports of interest is easy using filters. Filters can be applied for single or multiple variables: filter on report type, report name, creator, or scheduled (yes/no).

    The result of the filtered list is displayed on multiple pages if needed.

    See the example below:

    Perform Report Actions

    The icons along the top right of the Report Templates list and in the Actions column allow you to perform the actions described below:

    New Report Create a new report template
    Run Run the report, bypassing the report’s schedule
    View View the complete report
    Edit Edit the report template
    Delete Delete the report from the list
    Clone Duplicate the template of the selected report
    Refresh Update the reports list

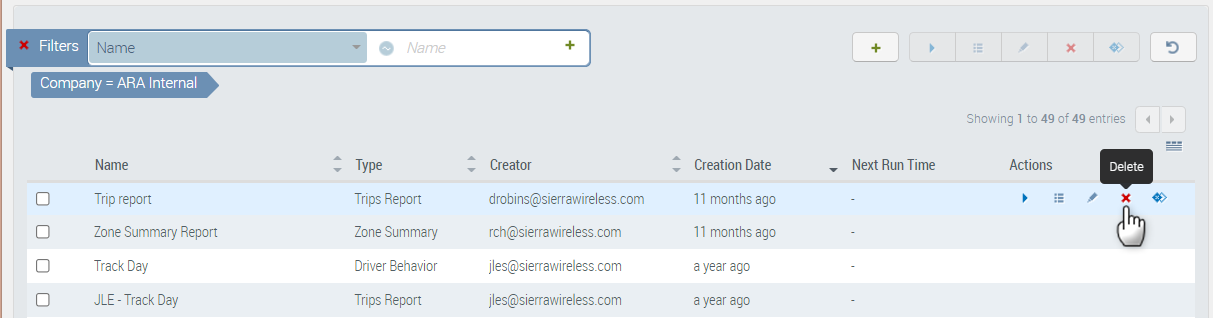

    You can also perform actions (such as Delete) for a specific instance of a report in the Actions column, as shown below.

    Viewing Reports

    To view a report:

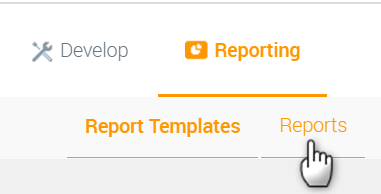

    • Go to Reporting > Reports and then select a report from the table.
    • On the Recent Reports widget, click the row for the desired report.
    • On the list of report templates, click the row for the desired report template.

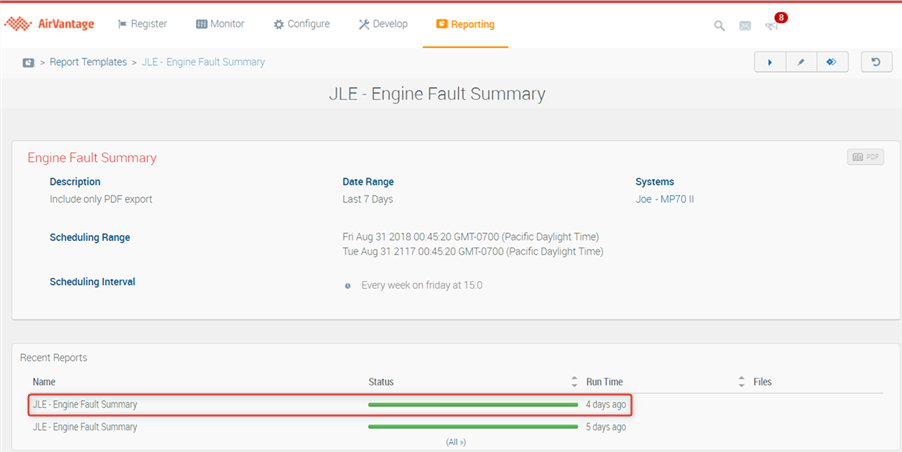

      • If multiple instances of the report have been generated, an interim page appears. It displays a summary of the report template settings along with a list of recently generated reports.

      • Click the row for the desired report instance to view the full report details.

    Perform Report Actions

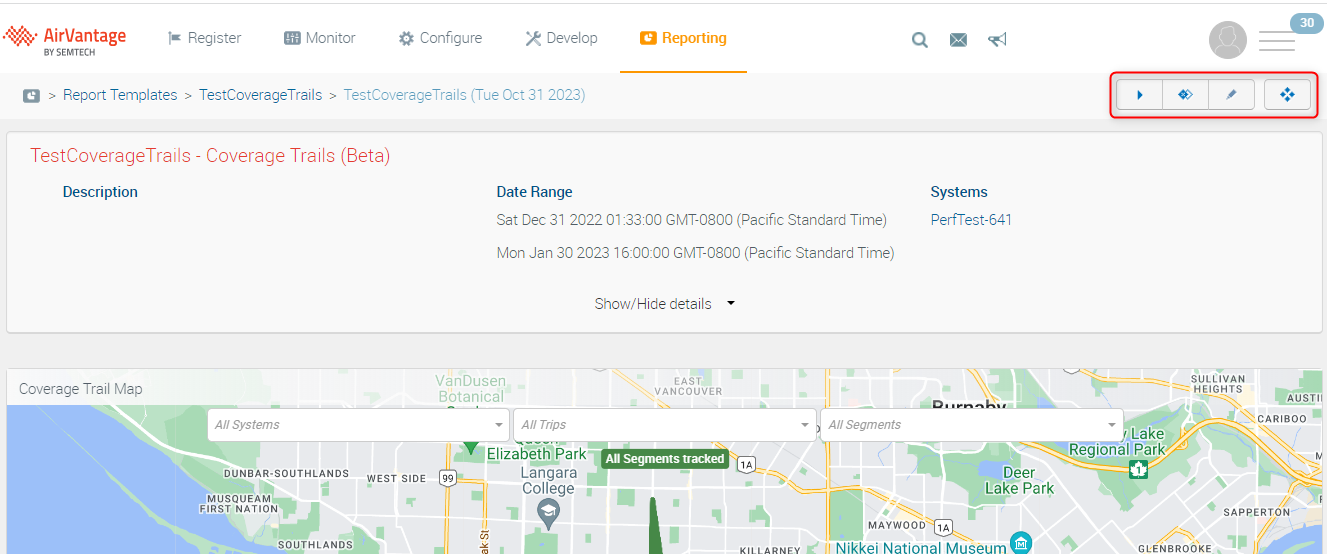

    The icons along the top right of the report allow you to perform the actions described below:

    Run Run the report, bypassing the report’s schedule
    Clone Duplicate the template of the selected report
    Edit Edit the report template
    View raw data points View the raw data points used to generate the report. See this page for more information.

    For more information about reports, see the How-Tos section below.


    How-Tos

    This section provides you with helpful procedures for common tasks.
