Tracker: Zone Summary

The Zone Summary report provides a summary of time spent, as a percentage, in different zones across one or more units.

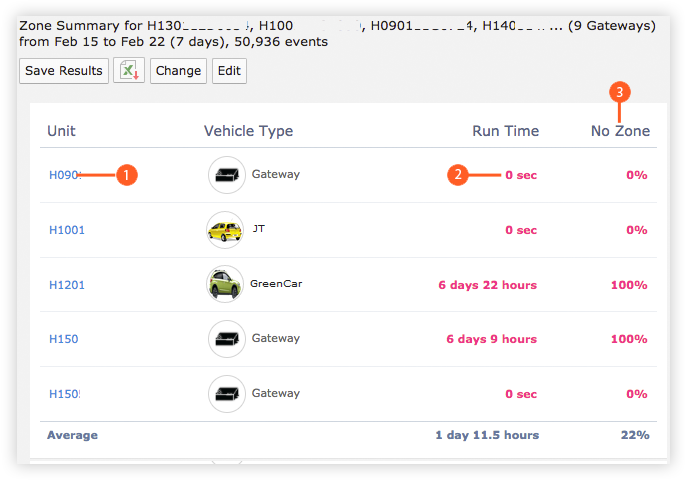

The report provides the gateway ID (unit name) , its run time , and the percentage of time it spends in a zone (see the AMM Operation and Configuration guide for more information about zones). If no zone is assigned to the gateway, the report shows the run time under the No Zone heading .

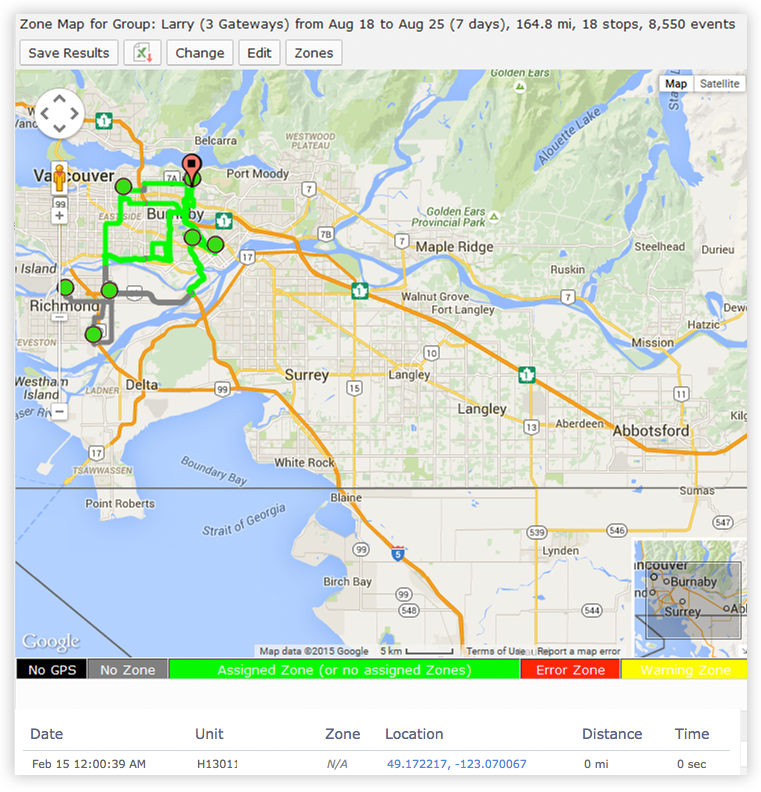

Click on a unit name to display the data on the map. The legend shows the status colors for the gateway’s trail line. Click on a marker for more information. This is the same information presented in the Zone Map report.

Configuration Fields

• Gateway(s)^*: by default this is set to the gateway(s) selected in the gateway tree. Enter the name(s) manually to modify this field. Click on Filter to open the subfilter options.
• Vehicle Type: specifies the type of vehicles to include in the report. Clicking this field displays the Select a vehicle type popup allowing for All vehicle types or a specific vehicle type to be selected.
• Report time range^*: use the drop-down menu to select from Previous Months, Previous Weeks, Previous Days or Range. Enter the numeric value in the field. When Range is selected, use the calendar pop-up to select the dates. Alternatively, enter the date and time manually (yyyy/mm/dd hh:mm).
• Output Format: select HTML to generate the report in the browser window. Select Excel to display the generated report in Microsoft Excel.
• Save for later or schedule a run time: Enable to create reports that can be saved for future use. See Saving and Scheduling a Report for a Later Run Time for more information.

^*denotes a required field
