    Renaming Networking Rules

    The Friendly Name for Networking Rules for both LAN and WAN can be changed via a configuration template.

    The best practice is to create a separate configuration template that only contains the Friendly Name change for any Networking Rules.

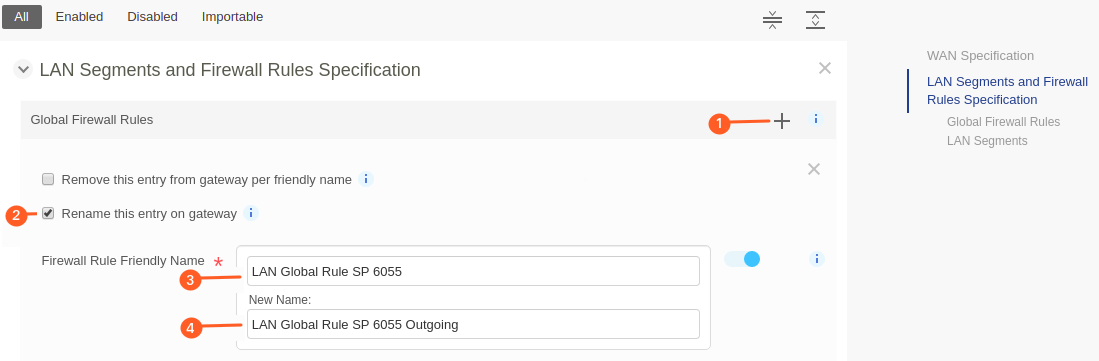

    Rename LAN Global Networking Rule

    1. To rename a rule, first create a template from scratch. See Creating a Configuration Template from Scratch

    2. To rename a LAN Networking rule, use the building block, LAN Segments and Firewall Rules Specification.

    3. Use the + button on the Global Firewall Rules to add a Networking Rule entry.

    4. For each entry, enable the Rename this entry on gateway .

    5. Enter the current Firewall Rule Friendly Name that you wish to change.

    6. Then enter the New Name .

    7. Repeat from step 3 for each rule that you wish to rename.

    8. The template is now ready to be published and deployed.

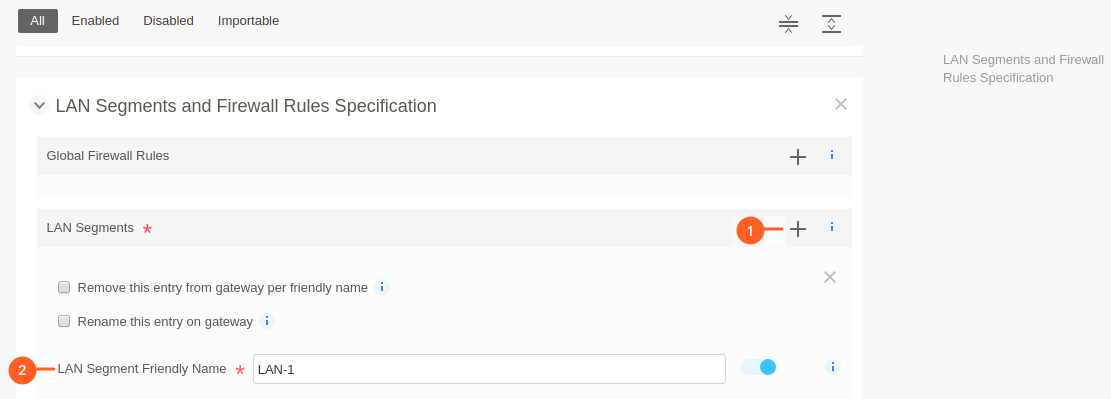

    <!– not yet working AMM-9090 Rename LAN Segments Networking Rule

    1. To rename a rule, first create a template from scratch. See Creating a Configuration Template from Scratch

    2. To rename a LAN Segments Networking rule, use the building block, LAN Segments and Firewall Rules Specification.

    3. Use the + button on the LAN Segments to add a rule entry.

    4. For each entry, enter the LAN Segment Friendly Name of the LAN device that the networking rule applies to.

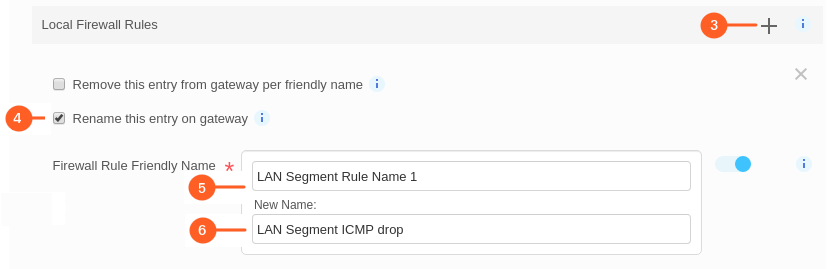

    5. Scroll down to find Local Firewall Rules and then expand it .

    6. Enable the Rename this entry on gateway .

    7. Enter the current Firewall Rule Friendly Name that you wish to change.

    8. Then enter the New Name .

    9. Repeat from step 3 for each rule that you wish to rename.

    10. The template is now ready to be published and deployed.

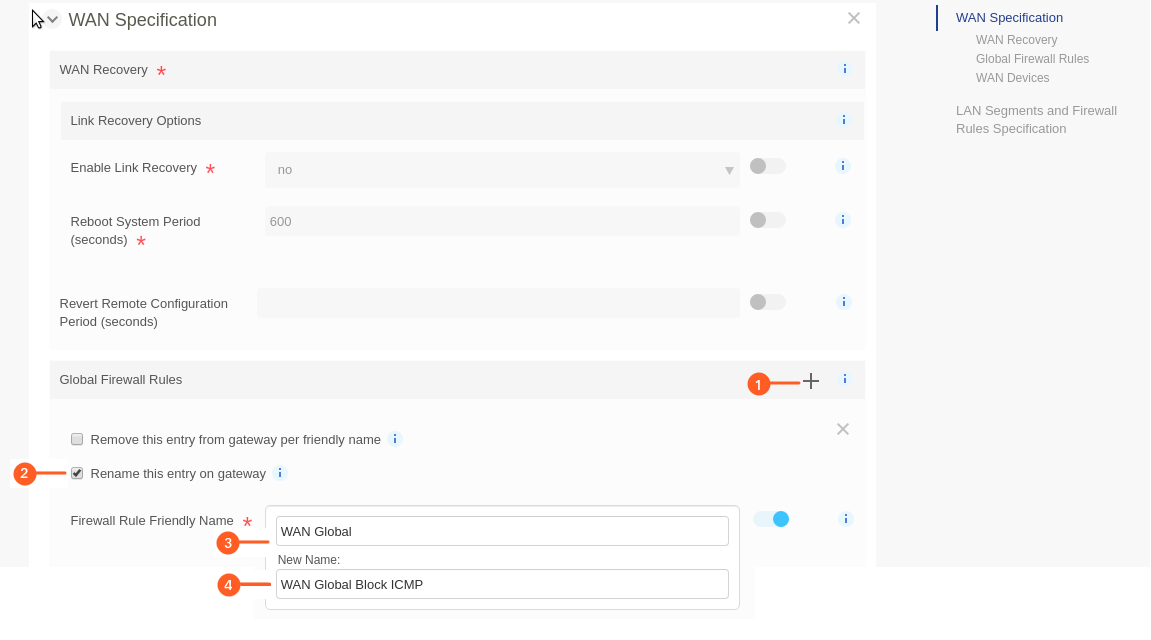

    -> Rename WAN Global Networking Rule

    1. To rename a rule, first create a template from scratch. See Creating a Configuration Template from Scratch

    2. To rename a WAN Networking rule, use the building block, WAN Specification.

    3. Use the + button on the Global Firewall Rules to add a rule entry.

    4. For each entry, enable the Rename this entry on gateway .

    5. Enter the current Firewall Rule Friendly Name that you wish to change.

    6. Then enter the New Name .

    7. Repeat from step 3 for each rule that you wish to rename.

    8. The template is now ready to be published and deployed.
